Site Plans for Commercial Parking & Signage Permits — institutional-grade drafting.
Fast 24-Hour Turnaround
Rush delivery available when needed.
High-accuracy site drawings
Clear, professional drawings you can rely on.
No Site Visit Required
Revision included with every order.
Commercial Signage & Parking Site Plans
Commercial projects demand a higher level of technical detail. Whether you are installing a monument sign for a church or reconfiguring a small business parking lot, Prime Site Plan delivers the professional documentation required for institutional and commercial approvals. We focus on visibility, safety, and compliance with local commercial zoning codes.
Engineering-Grade Precision for Commercial Projects
Commercial permits often require high-resolution data for road right-of-ways, easements, and sight triangles. We provide professional-grade site plans using precise GIS coordinates and roadway data, ensuring your sign or parking layout meets all municipal engineering standards.
HOW IT WORKS
Our site plans are non-certified and are not intended to replace a legal survey.
The Prime Advantage

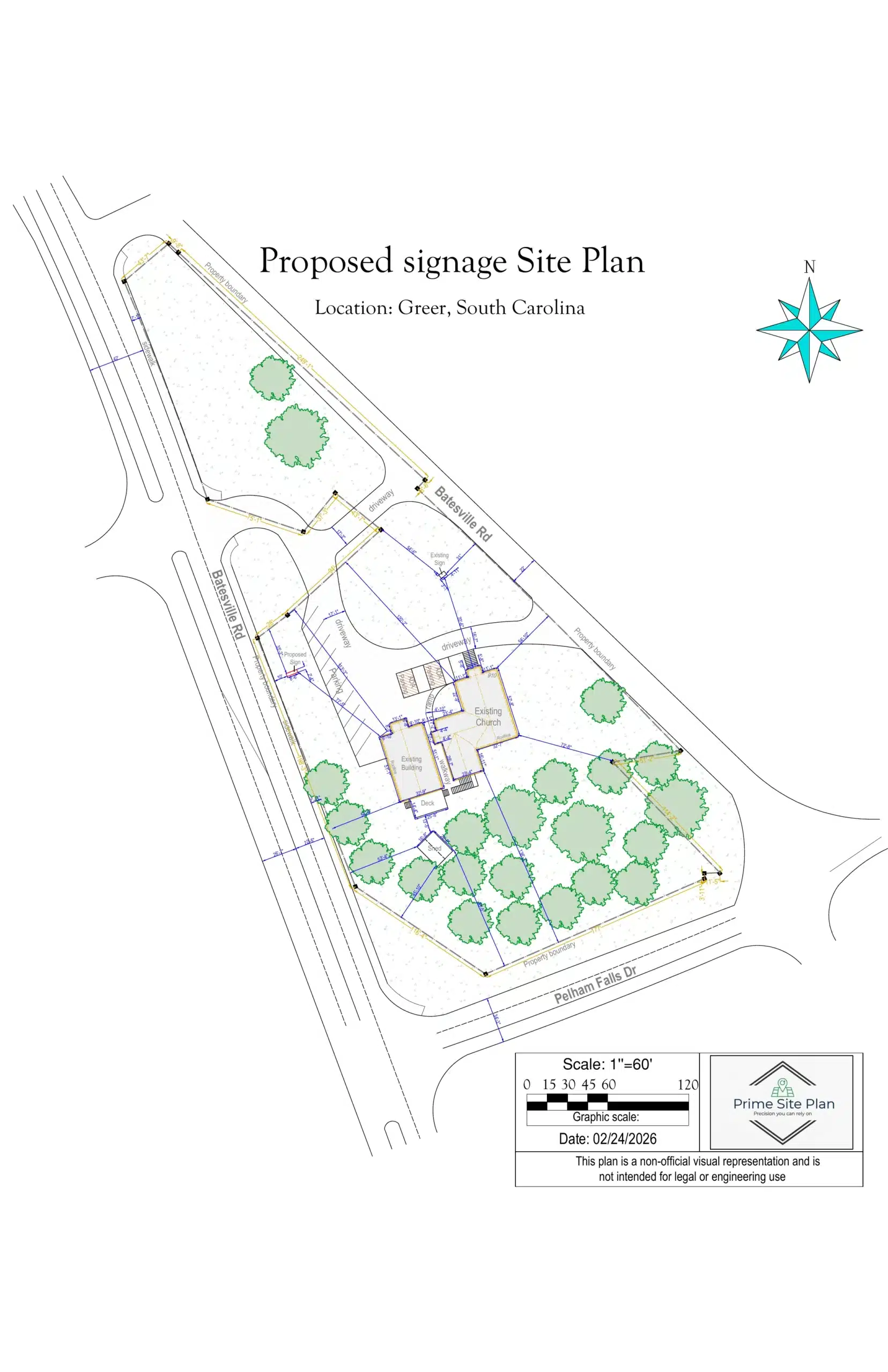

Example: Monument Sign Plan in Greer, SC
Technical layout showing the proposed sign location relative to street intersections and existing utilities for a commercial site.
The plan includes right-of-way measurements, sight triangle analysis, and utility clearances — formatted for municipal engineering review.
Choose your preferred plan level below for a permit-ready site plan delivered in 24 hours.
Base Site Plan
Efficient and accurate site plan for small residential projects and simple permit applications. Features included:
- Property boundaries
- Primary structure
- Lot dimensions
- North arrow
- Scale
- Parcel ID
- Address
Standard Site Plan
Detailed site plan including property boundaries, driveways, and building footprints — ideal for most residential permits. Features included:
- Property boundaries
- Primary structure
- Roof line
- Lot dimensions
- Driveways / parking areas
- Fence
- Landscaping elements
- North arrow
- Scale
- Measurements between major features
- Parcel ID
- Address
- Add new structures (option)
Elite Site Plan
High-detail site plan with zoning and advanced measurements for complex residential projects. Features included:
- Property boundaries
- Primary structure
- Roof line
- Lot dimensions
- Driveways / parking areas
- Walkways
- Sidewalks
- Fence
- Landscaping & terrain features
- North arrow
- Scale
- Measurements between major features
- Parcel ID
- Address
- Add new structures (option)
Commercial Site Plan
Comprehensive commercial site plan including parking, access, structures, and site improvements. Features included:
- Property boundaries
- Primary structure(s)
- Roof line(s)
- Lot dimensions
- Driveways / parking lots
- Landscaping & terrain features
- Walkways
- Fence
- Sidewalks
- North arrow
- Scale
- Measurements between major features
- Parcel ID
- Address
- Add new structures (option)
What Clients Say About Our Commercial Site Plans
Real feedback from business owners and contractors who used our site plans for commercial signage and parking permits across the U.S.
Reviews
Emily Johnson
The team was very responsive throughout our monument sign permit. The right-of-way mapping was exactly what the city required.
Michael Thompson
Fast delivery and extremely accurate commercial site plan. The sight triangle analysis prevented a costly rejection.
Sarah Williams
Needed a site plan for our church parking lot and got it in under 24 hours. Very accurate and professionally presented.
Frequently Asked Questions
Everything you need to know before ordering your Commercial Parking & Signage Permits site plan.
We handle monument signs, parking lot reconfigurations, small-scale commercial developments, institutional signage (churches, schools), and any commercial project requiring a professional site plan for municipal approval.
Yes. For signage permits, we verify that your proposed sign placement doesn’t obstruct traffic visibility at intersections, including the required sight triangle measurements per your local traffic engineering standards.
We offer unlimited revisions. If the city engineer needs adjusted measurements or additional utility clearance data, just let us know and we’ll update it for free.
Yes. Our high-resolution technical layouts are formatted for professional presentation and are regularly used for city council and board of zoning adjustment reviews.
Standard turnaround is 24 hours. Rush Delivery available within 12 hours. You’ll receive a high-resolution PDF directly in your inbox.
Not Sure Which Plan Is Right for Your Project?
Every building department has different requirements. If you’re unsure about the level of detail your permit office demands, we are here to help. Send us your project details, and we’ll recommend the best fit for a successful approval.
