Site Plans for New Driveways & Curb Cut Permits — engineering-grade layouts in 24 hours.
Fast 24-Hour Turnaround
Rush delivery available when needed.
High-accuracy site drawings
Clear, professional drawings you can rely on.
No Site Visit Required
Revision included with every order.
Driveway & Curb Cut Site Plans
Whether you are expanding an existing driveway, adding a new curb cut, or planning a circular entrance, Prime Site Plan provides the technical drawings required by your city’s public works or building department. We accurately map your property’s access points, ensuring all widths, lengths, and setbacks from utilities are clearly labeled.
Infrastructure Mapping & Access Point Precision
Our remote drafting process uses high-resolution imagery and GIS infrastructure data to map your property’s access points relative to public roads and sidewalks. We ensure all radii and street-side assets are clearly labeled to meet municipal standards.
HOW IT WORKS
Our site plans are non-certified and are not intended to replace a legal survey.
The Prime Advantage

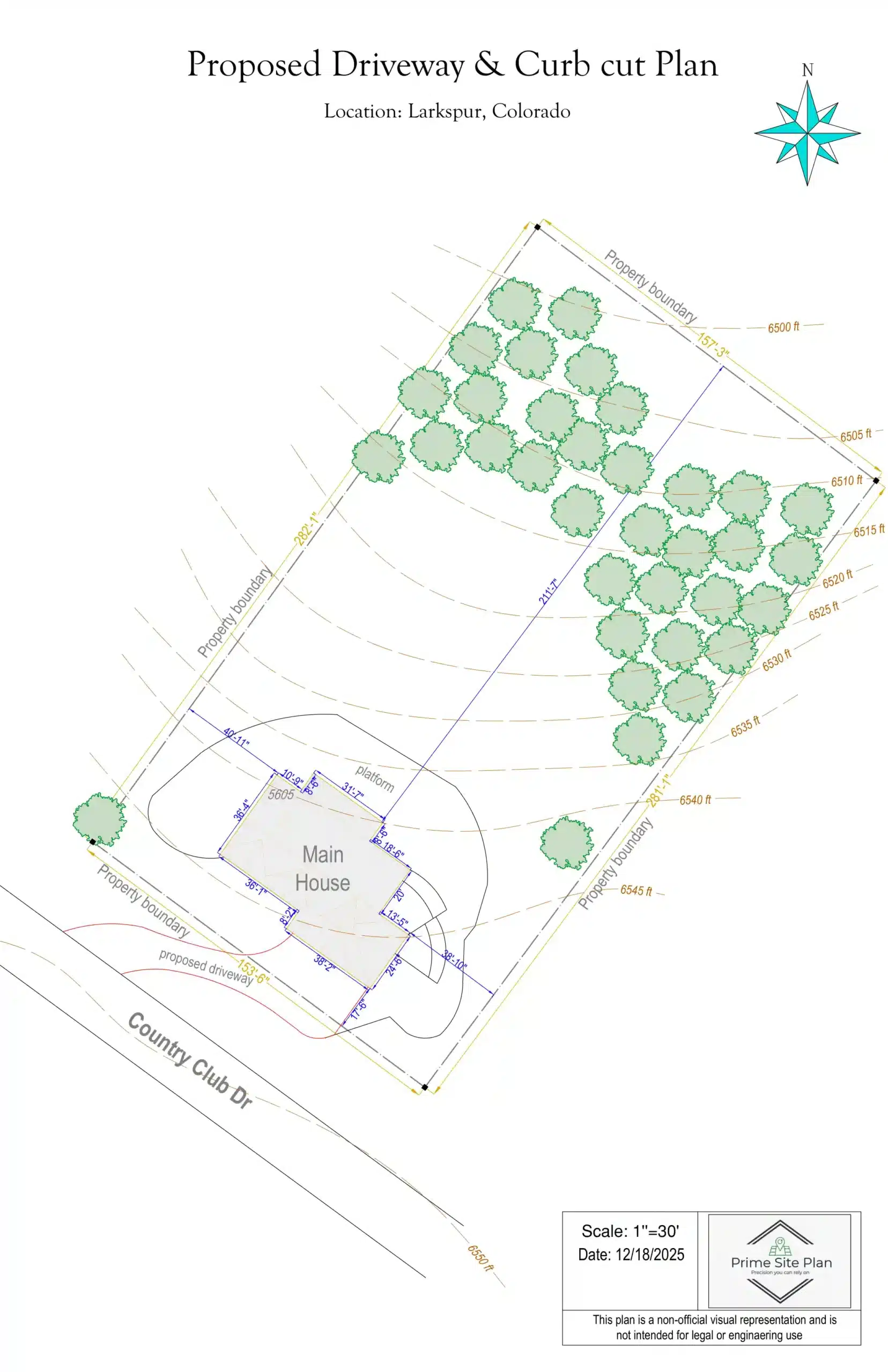

Example: Driveway Access Plan in Larkspur, CO
Notice the precise dimensioning from the property boundaries and the main roadway — crucial for a hassle-free curb cut permit.
The plan includes turning radii, apron dimensions, sidewalk clearances, and utility setbacks — everything your public works department needs for approval.
Choose your preferred plan level below for a permit-ready site plan delivered in 24 hours.
Base Site Plan
Efficient and accurate site plan for small residential projects and simple permit applications. Features included:
- Property boundaries
- Primary structure
- Lot dimensions
- North arrow
- Scale
- Parcel ID
- Address
Standard Site Plan
Detailed site plan including property boundaries, driveways, and building footprints — ideal for most residential permits. Features included:
- Property boundaries
- Primary structure
- Roof line
- Lot dimensions
- Driveways / parking areas
- Fence
- Landscaping elements
- North arrow
- Scale
- Measurements between major features
- Parcel ID
- Address
- Add new structures (option)
Elite Site Plan
High-detail site plan with zoning and advanced measurements for complex residential projects. Features included:
- Property boundaries
- Primary structure
- Roof line
- Lot dimensions
- Driveways / parking areas
- Walkways
- Sidewalks
- Fence
- Landscaping & terrain features
- North arrow
- Scale
- Measurements between major features
- Parcel ID
- Address
- Add new structures (option)
Commercial Site Plan
Comprehensive commercial site plan including parking, access, structures, and site improvements. Features included:
- Property boundaries
- Primary structure(s)
- Roof line(s)
- Lot dimensions
- Driveways / parking lots
- Landscaping & terrain features
- Walkways
- Fence
- Sidewalks
- North arrow
- Scale
- Measurements between major features
- Parcel ID
- Address
- Add new structures (option)
What Clients Say About Our Driveway & Curb Cut Plans
Real feedback from homeowners and contractors who used our site plans for driveway and curb cut permits across the U.S.
Reviews
James Anderson
Excellent service! The utility setback data on my curb cut plan prevented a costly mistake. Very accurate and professional.
Jessica Martinez
Clear, detailed driveway plan. The infrastructure mapping was spot on and my contractor loved the precision.
David Miller
They helped me navigate the public works requirements for my driveway expansion. Very knowledgeable about local codes.
Frequently Asked Questions
Everything you need to know before ordering your New Driveways & Curb Cut Permits site plan.
Yes, most municipalities and public works departments require a site plan showing your driveway dimensions, curb cut location, turning radii, and setbacks from utilities and sidewalks. Our plans include all required data formatted to your local standards.
We map your driveway relative to sidewalks, curbs, street-side utilities, fire hydrants, and other infrastructure — ensuring your curb cut placement meets all municipal engineering standards.
We offer unlimited revisions. If public works needs adjusted turning radii or additional utility clearance data, just let us know and we’ll update it for free.
Yes. We map all entry points, turning radii, and apron dimensions with precise measurements, regardless of the complexity of your driveway configuration.
Standard turnaround is 24 hours. Rush Delivery available within 12 hours. You’ll receive a high-resolution PDF directly in your inbox.
Not Sure Which Plan Is Right for Your Project?
Every building department has different requirements. If you’re unsure about the level of detail your permit office demands, we are here to help. Send us your project details, and we’ll recommend the best fit for a successful approval.
