New & Detached Garage Site Plans
Planning a new detached garage for your vehicles, boat, or a dedicated workshop? Most municipalities require a detailed site plan to ensure your new structure adheres to strict setback and drainage rules. At Prime Site Plan, we provide the technical accuracy needed to show how your garage integrates with your home and existing driveway.
Building Line Identification & Lot Coverage
By integrating advanced GIS data with professional AutoCAD drafting, we provide the exact building line identification and lot coverage ratios required for garage permits. Our remote process uses high-resolution imagery to verify your property’s topography and infrastructure, particularly in high-wind zones like Florida.

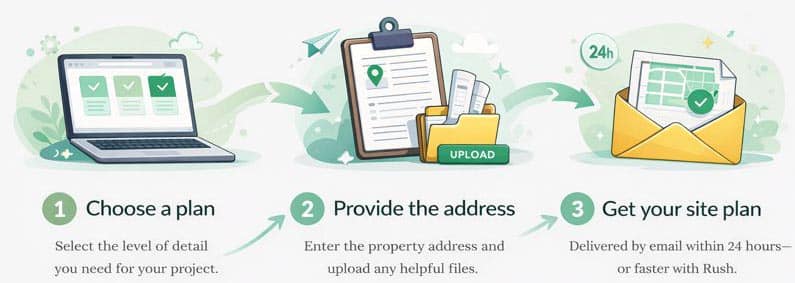

HOW IT WORKS
Our site plans are non-certified and are not intended to replace a legal survey.
The Prime Advantage

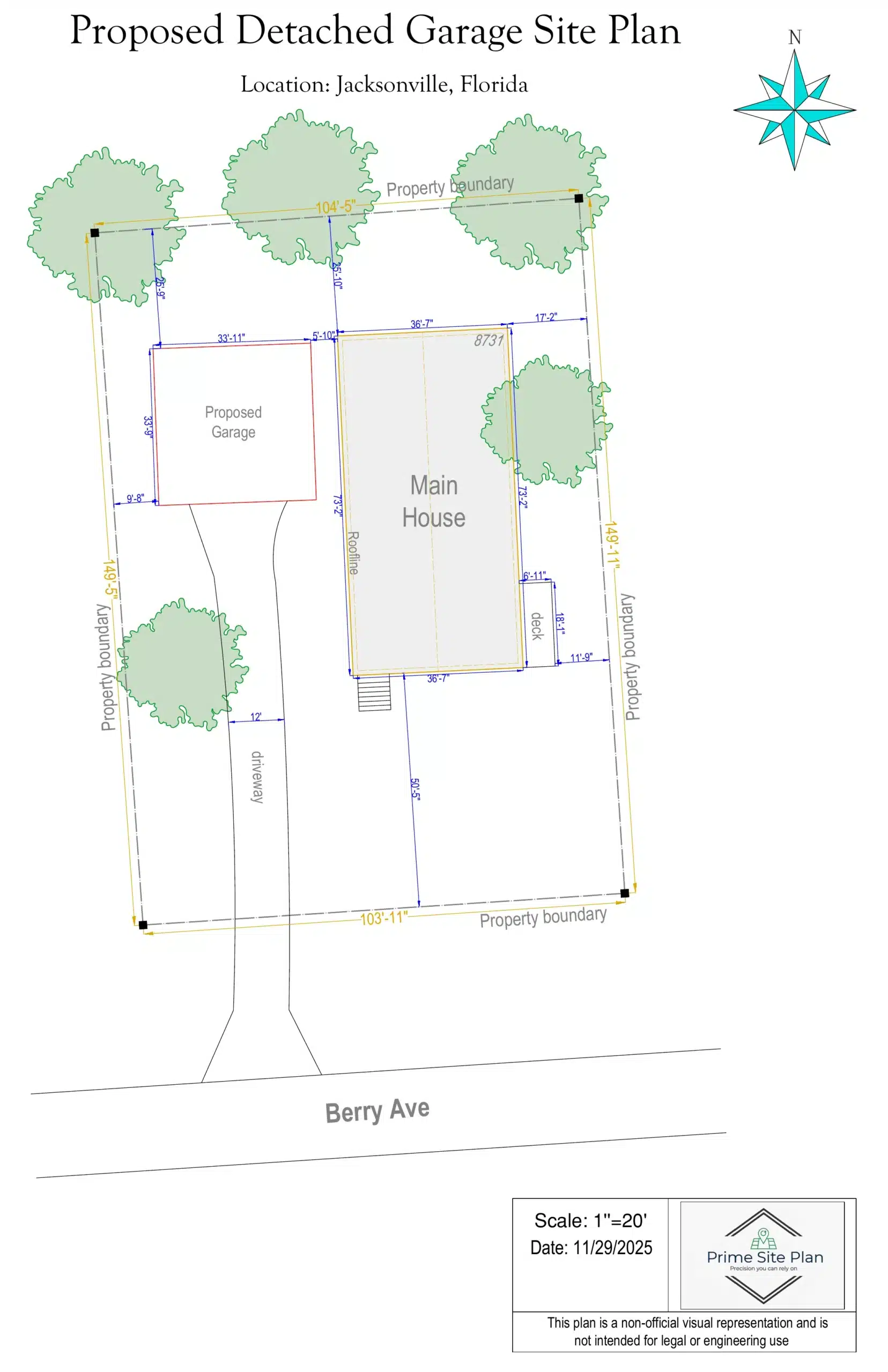

Example: Detached Garage Site Plan in Jacksonville, FL
This sample features exact setbacks from property lines and illustrates the seamless integration of a new garage with the existing residential footprint.
The plan includes driveway connection details, wind load data for coastal compliance, and all required lot coverage calculations.
Choose your preferred plan level below for a permit-ready site plan delivered in 24 hours.
