Shed, ADU & Accessory Structure Site Plans
Planning to add a storage shed, a modern ADU, or a backyard workshop? Most municipalities require a detailed site plan before you can even break ground. At Prime Site Plan, we bridge the gap between your vision and city approval. Our team specializes in creating high-precision AutoCAD site plans that clearly identify setbacks, existing structures, and proposed footprints.
Zoning Compliance & Topographic Precision
By utilizing advanced GIS data and high-resolution satellite imagery, we deliver professional-grade layouts remotely — eliminating the need for expensive site visits or land surveys. This allows us to provide faster turnarounds while maintaining 99% accuracy for residential permits.
HOW IT WORKS
Our site plans are non-certified and are not intended to replace a legal survey.
The Prime Advantage

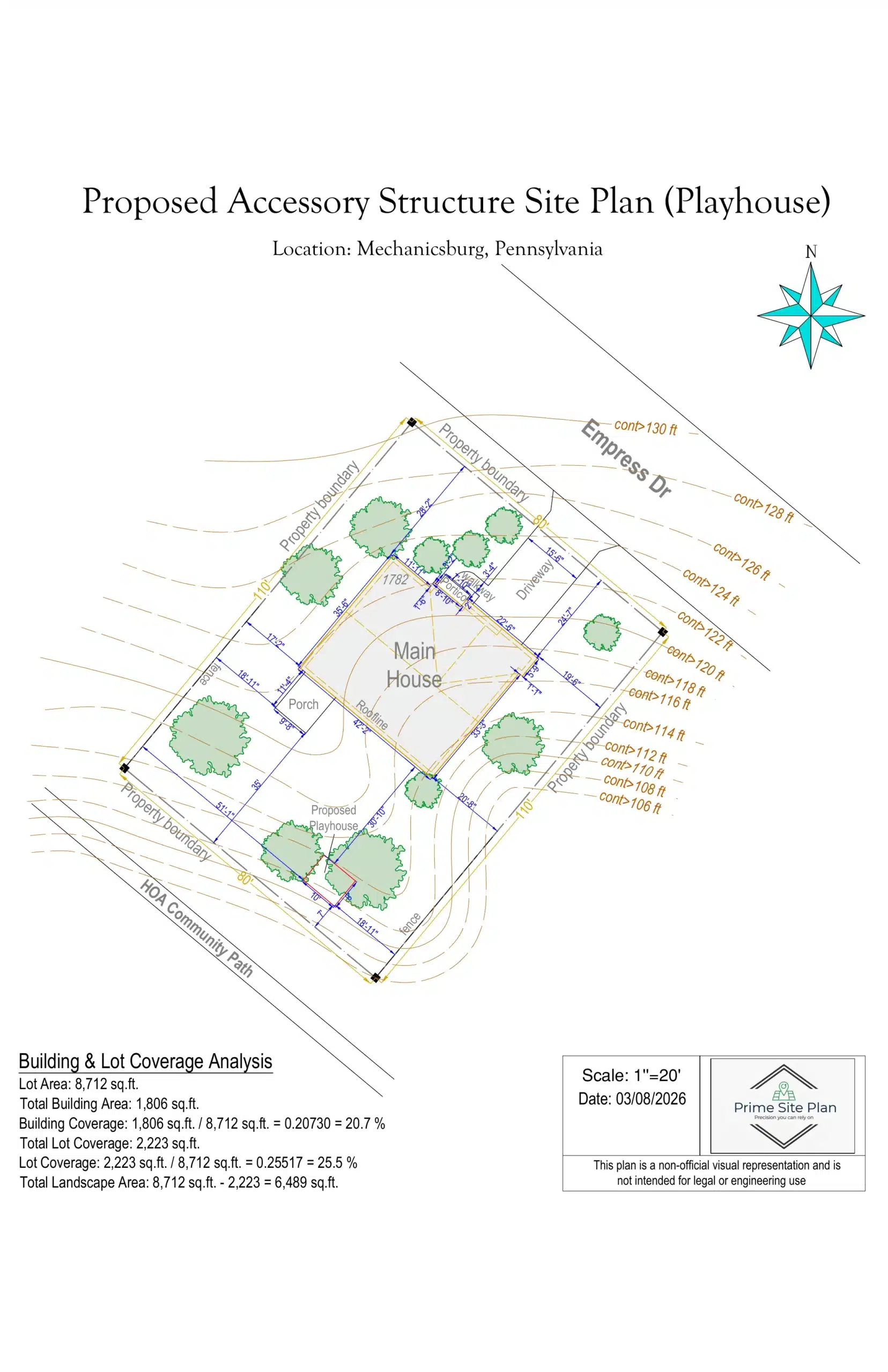

Example: Shed & Accessory Structure Site Plan in Mechanicsburg, PA
This sample showcases an accessory structure plan featuring topographic contours and precise lot coverage calculations — essential for Pennsylvania building permits.
The plan includes all required setback measurements, existing structure locations, and the proposed accessory structure footprint.
Choose your preferred plan level below for a permit-ready site plan delivered in 24 hours.
Base Site Plan
Efficient and accurate site plan for small residential projects and simple permit applications. Features included:
- Property boundaries
- Primary structure
- Lot dimensions
- North arrow
- Scale
- Parcel ID
- Address
Standard Site Plan
Detailed site plan including property boundaries, driveways, and building footprints — ideal for most residential permits. Features included:
- Property boundaries
- Primary structure
- Roof line
- Lot dimensions
- Driveways / parking areas
- Fence
- Landscaping elements
- North arrow
- Scale
- Measurements between major features
- Parcel ID
- Address
- Add new structures (option)
Elite Site Plan
High-detail site plan with zoning and advanced measurements for complex residential projects. Features included:
- Property boundaries
- Primary structure
- Roof line
- Lot dimensions
- Driveways / parking areas
- Walkways
- Sidewalks
- Fence
- Landscaping & terrain features
- North arrow
- Scale
- Measurements between major features
- Parcel ID
- Address
- Add new structures (option)
Commercial Site Plan
Comprehensive commercial site plan including parking, access, structures, and site improvements. Features included:
- Property boundaries
- Primary structure(s)
- Roof line(s)
- Lot dimensions
- Driveways / parking lots
- Landscaping & terrain features
- Walkways
- Fence
- Sidewalks
- North arrow
- Scale
- Measurements between major features
- Parcel ID
- Address
- Add new structures (option)
What Clients Say About Our Shed & ADU Plans
Real feedback from homeowners who used our site plans for sheds, ADUs, and accessory structure permits across the U.S.
Reviews
Ashley Davis
Great communication. Needed a small revision to my shed placement and got the updated plan back the same day.
Daniel Brown
The shed plan looked exactly like the examples — clean, precise, and ready for submission.
Amanda Wilson
As a contractor, I use these plans for ADU projects all the time. The zoning precision saves me hours.
Frequently Asked Questions
Everything you need to know before ordering your Shade or AUD site plan.
Yes, most municipalities require a site plan showing your property boundaries, setbacks, existing structures, and the proposed footprint of your shed or ADU. Our plans include all required data formatted to your local building department’s standards.
Yes. For sloped lots, we include topographic contour lines to show the elevation changes and how they relate to your proposed ADU or accessory structure placement.
We offer unlimited revisions. If an inspector needs adjusted setback measurements or additional topographic detail, just let us know and we’ll update it for free.
Extremely accurate. We use official county parcel maps and precision AutoCAD tools — especially important in high-density areas where ADU setback rules are strictly enforced.
Standard turnaround is 24 hours. Rush Delivery available within 12 hours. You’ll receive a high-resolution PDF directly in your inbox.
Not Sure Which Plan Is Right for Your Project?
Every building department has different requirements. If you’re unsure about the level of detail your permit office demands, we are here to help. Send us your project details, and we’ll recommend the best fit for a successful approval.
