Expanding Your Driveway? Zoning and Layout Rules for Fast Permit Approval
For the modern homeowner, property development is a continuous effort to align physical functionality with evolving personal needs. Among these infrastructure changes, modifying or expanding a driveway is one of the most practical upgrades you can undertake. Whether driven by the addition of a new vehicle to the family, the acquisition of a boat or recreational vehicle (RV) that requires dedicated off-street parking, or a simple desire to enhance the property’s curb appeal and vehicle turnaround capacity, a driveway expansion promises immediate utility.
However, many property owners view a driveway project through a strictly tactical lens: a matter of hiring a concrete or asphalt contractor, clearing a section of the yard, and pouring the material. This miscalculation often brings immediate conflict with local municipal authorities.
Before you begin
In the United States, municipal engineering, public works, and zoning departments regulate driveways more heavily than almost any other minor residential project. A driveway is not merely a private path on private land; it is a critical interface point between private property and public infrastructure. It alters stormwater runoff patterns, breaks the continuity of public sidewalks, directly impacts pedestrian safety, and modifies vehicle sightlines along municipal roadways.
Failing to understand local regulations before breaking ground can lead to code violation citations, mandatory engineering alterations, and the forced removal of thousands of dollars of newly poured concrete. This deep-dive architectural and legal guide analyzes the regulations governing residential driveway expansions, providing the technical knowledge required to navigate municipal engineering reviews and secure fast permit approval.
In this guide
Jump directly to the section you need.
Section 1: The Invisible Matrix — Zoning Constraints and the Impervious Surface Dilemma
To understand why a simple strip of concrete requires formal administrative review, you must look at your property through the lens of municipal zoning codes. The most restrictive barrier to expanding a driveway is rarely the physical layout of the yard; it is an invisible legal ratio known as Lot Coverage or Impervious Surface Limitations.
The Impervious Surface Calculation
Municipalities divide all residential parcels into two structural categories: pervious and impervious surfaces.
- Pervious Surfaces: Natural soil, turf grasses, landscaping beds, and uncompacted garden zones that allow rainwater to naturally infiltrate back into the local subterranean water table.
- Impervious Surfaces: Artificial structures and ground covers that completely block the natural infiltration of water. This includes the primary roofline, detached accessory buildings, swimming pools, concrete patios, walkways, and driveways.
Every residential zoning district features a strict maximum impervious surface threshold, typically expressed as a percentage of the total lot area (ranging from 30% to 50% depending on urban density).
When you expand a driveway, you are converting pervious soil into a permanent impervious barrier. If your property is already near its legal limit due to an existing home footprint, large patio, or pool, adding a 10-foot-wide concrete parking pad next to your garage can push your lot coverage ratio over the legal zoning threshold. Crossing this line triggers an automatic permit rejection, requiring you to either scale back the design or go through an expensive and uncertain Zoning Variance process.
Property Line Setbacks for Paved Surfaces
While structural setbacks dictate how close a house or garage can get to a property line, municipalities also enforce distinct setbacks for hardscaping and driveways.
- Side Property Line Setbacks: A standard single-family residential zone often requires driveways to maintain a clear buffer from the adjacent neighbor’s property line—typically between 2 and 5 feet. This buffer ensures that vehicle tires do not inadvertently cross onto neighboring grass and prevents structural damage to shared fences during construction.
- Zero-Lot-Line Exceptions: Some high-density or townhouse developments permit a zero-foot driveway setback, allowing shared concrete aprons. However, utilizing this exception requires precise verification of the recorded property boundaries to avoid illegal encroachment.
Section 2: The Public-Private Interface — Navigating Right-of-Way and Access Management
The moment a driveway leaves the main body of your yard and approaches the street, it crosses a legal boundary known as the Property Line / Right-of-Way (ROW) Interface. The street, the public sidewalk, and the strip of grass between them (the parkway or verge) are almost never private property. They belong to the city or county under a dedicated public right-of-way.
The Anatomy of the Driveway Apron
The section of your driveway that sits entirely within the public right-of-way—connecting the edge of the asphalt street to your actual property line—is called the Driveway Apron or Approach. Because this asset sits on public land, its design, thickness, and slope are dictated by public works specifications rather than homeowner preference.
- Structural Thickness Requirements: While a standard residential driveway on private land is typically poured at a thickness of 4 inches over a compacted aggregate base, the city-controlled apron must withstand the heavy wheel loads of municipal sanitation trucks, delivery vehicles, and emergency equipment. Consequently, public works codes often mandate a minimum thickness of 6 inches, frequently reinforced with steel rebar or welded wire mesh.
- The Flare Geometry: Driveway aprons cannot be simple straight lines. They must feature engineered curves or angles called “flares” or “radii” where they meet the curb. These flares allow turning vehicles to clear the radius of the turn without dropping their rear tires over the concrete curb, protecting both the vehicle’s suspension and the structural integrity of the municipal gutter system.
Sidewalk Continuity and ADA Compliance
If a public sidewalk crosses your driveway layout, the expansion must comply with the strict federal guidelines of the Americans with Disabilities Act (ADA), which are rigorously enforced at the local level.
- The Cross-Slope Rule: The cross-slope of a public sidewalk (the angle perpendicular to the direction of pedestrian travel) cannot exceed a ratio of 1:50, or a maximum 2% slope. When building or modifying a driveway apron, contractors often attempt to create a steep incline to match the grade of the yard. If this incline passes directly through the sidewalk zone, it creates an illegal pedestrian hazard. The sidewalk must remain flat, forcing the grade transition to occur entirely before and after the walking path.
- The Continuous Path Requirement: The material crossing the sidewalk must provide a smooth, slip-resistant surface. Any cracking, dramatic stepping (exceeding 1/4 inch), or improper joint placement during a driveway expansion will trigger an immediate failed municipal engineering inspection.
Sight Triangles and Safety Corridors
Access management rules dictate that any vehicle exiting a private driveway must have an unobstructed view of oncoming vehicular and pedestrian traffic.
- The Sight Triangle Matrix: Municipal engineering departments enforce an invisible dimensional zone known as the “Sight Triangle” at the intersection of the driveway and the street. This area—typically measured 10 to 15 feet along the driveway and a corresponding distance down the roadway—must remain completely clear of permanent obstructions.
- Prohibited Obstructions: Within this triangle, you cannot install high privacy fences, masonry columns, dense ornamental landscaping, or major structural expansions. If your proposed driveway expansion places a parked vehicle within this clear-sight corridor, the planning desk will deny the layout to protect public safety.
Section 3: Hydrology and Public Infrastructure — Managing Stormwater and Utility Controls
When you cover a section of land with concrete or asphalt, you alter the hydrology of the immediate area. A standard single-car driveway expansion can generate thousands of gallons of diverted rainwater during a heavy storm event. Municipalities must ensure this water does not compromise the public drainage network or flood adjacent private properties.
The Golden Rule of Grading: No Discharging on Neighbors
Civil engineering codes operate under a strict baseline rule: Your stormwater is your responsibility.
- Improper Cross-Grading: You cannot grade a new driveway expansion so that surface water sheets laterally onto an adjacent neighbor’s yard. This is a common point of civil litigation and immediate municipal code enforcement action.
- Engineered Collection Methods: Driveways must be graded to shed water either into your own pervious landscaping beds or directly out toward the public street gutter system. If the natural topography forces the driveway to slope toward a neighbor’s line, you must integrate engineered drainage systems—such as a continuous trench drain topped with a heavy steel grate—to collect the water and route it to an approved discharge point.

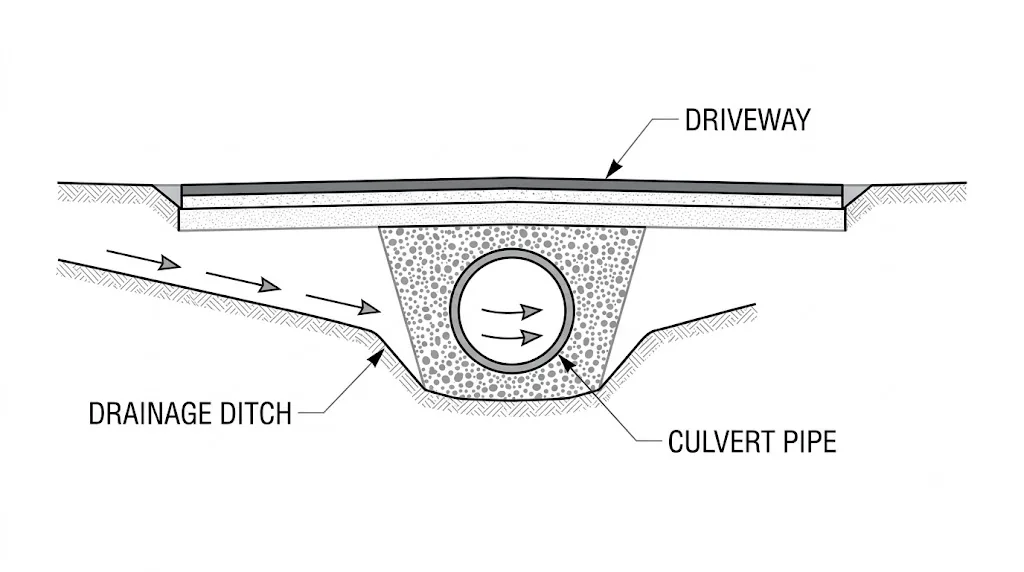

Culvert Pipe Integration and Drainage Swales
In many suburban and rural residential developments, the edge of the public roadway is bounded by an open, turf-lined ditch known as a Drainage Swale. This swale is a critical component of the regional flood control system, designed to collect and slow down stormwater runoff from the street.
- The Role of the Culvert: If you expand your driveway across an open swale, you cannot simply fill the ditch with dirt and pour concrete over it. Doing so would dam the entire street drainage network. You must install an engineered pipe underneath the driveway apron, known as a Culvert.
- Sizing and Material Specifications: The internal diameter of the culvert (typically ranging from 12 to 24 inches) must be verified by a civil site analysis to ensure it can handle a designated storm event (such as a 10-year or 25-year storm). Furthermore, the pipe material must meet public works standards—typically Corrugated High-Density Polyethylene (HDPE), reinforced concrete pipe (RCP), or corrugated galvanized steel.
- End Treatments: The ends of the culvert pipe must feature protective concrete mitered end sections or headwalls to prevent soil erosion from undermining the edges of your new driveway apron over time.
Utility Conflict Management
The public right-of-way corridor directly beneath or adjacent to your driveway approach is typically filled with an array of public infrastructure assets: main water lines, low-pressure sanitary sewer forces, natural gas conduits, high-voltage electrical lines, and fiber-optic telecommunications infrastructure.
- The Danger of Encroachment: Pouring a permanent, reinforced concrete pad over an unverified utility asset can lead to disaster. If a utility provider needs to access a leaking water main or repair a ruptured gas line beneath your new parking pad, they have the legal right to cut through your new concrete using heavy machinery.
- Utility Meter and Valve Adjustments: If your driveway expansion sweeps over an existing water meter box, a main gas shutoff valve, or a sanitary sewer cleanout, you cannot simply bury them. The assets must be professionally raised or lowered by a licensed utility contractor so that the access lids sit flush with the final grade of the finished concrete, housed in heavy-duty, traffic-rated utility boxes.
Section 4: Dimensional Blueprinting — Technical Standards for Residential Layouts
To clear municipal reviews and ensure long-term physical functionality, your driveway modification must adhere to strict geometric and dimensional baselines. Reviewers look closely at these dimensions on your plan to ensure they match local design guides.
Standard Width Allocations
Driveway widths are tightly regulated to prevent properties from becoming massive concrete parking lots that degrade the aesthetic of the neighborhood.
- Single-Car Driveways: Typically require a minimum width of 10 feet of clear pavement, with some urban codes allowing a tight 9-foot minimum.
- Two-Car Driveways: Require a baseline width of 18 to 20 feet to allow two standard consumer vehicles to sit side-by-side without doors striking.
- Maximum Width Limits: Most municipalities restrict the maximum width of a residential driveway approach at the property line to 24 to 30 feet. You cannot turn your entire front lawn into an expansive concrete pad without violating zoning codes.
Slope Transitions and Vehicle Clearance Geometry
The vertical profile of your driveway layout must account for the mechanical clearances of standard consumer vehicles. Dramatic changes in slope without proper transition curves will cause vehicles to “bottom out,” destroying front air dams, exhaust systems, and undercarriage components.
- Maximum Allowable Grade: While local limits vary based on regional topography, standard civil engineering codes generally restrict the maximum incline of a residential driveway to 14% to 15%. Anything steeper makes vehicle access hazardous during rain, ice, or snow events.
- Transition Crests and Sags: When transitioning from a flat street apron to a steep yard incline, you must design a gradual vertical curve. The transition zone should feature a moderate intermediate slope (typically 5% to 7%) to prevent low-clearance vehicles from scraping the center of their frame over the crest of the hill.
Turning Radii and Functional Layout Enhancements
If your driveway project involves adding a specialized layout element—such as a turnaround hammerhead, a side parking pad for an RV, or a circular sweeping drive—the layout must respect vehicle wheel turning paths.
- The Hammerhead Backup Pocket: To safely back out of a long driveway without entering a busy street in reverse, homeowners often add a 3-way turnaround pocket. This pocket must extend at least 10 to 12 feet deep perpendicular to the main driveway stem, featuring an internal turning radius of at least 5 feet to accommodate standard vehicle tracking.
- RV Parking Pad Specifications: Parking a heavy Class A motorhome or a large travel trailer requires structural and spatial planning. The pad should feature a minimum width of 12 feet and a length of 35 to 45 feet, positioned completely behind the front building setback line to stay compliant with standard residential zoning codes.
Section 5: The Master Layout Requirement — Why Professional Mapping is Mandatory for Approval
When submitting a permit application for a driveway expansion, many property owners attempt to save money by submitting basic hand-drawn sketches on graph paper, or annotated Google Earth satellite screenshots. This approach leads to immediate administrative rejection.
Municipal reviewers cannot approve a project based on a sketch. They are legally required to verify precise lot coverage numbers, setback dimensions, right-of-way boundaries, and structural locations.
To be considered permit-ready by a city engineering or zoning desk, your application must be supported by an accurate, professional site plan that includes specific drafting criteria:
- Precise Scale and Orientation: The plan must be drawn to a recognized architectural or engineering scale (such as 1 inch = 20 feet or 1 inch = 30 feet), complete with a clear graphical scale bar and a North orientation arrow. This allows the reviewer to use an engineering scale ruler to verify any unlabelled dimension on the fly.
- Accurate Parcel Boundaries and Linear Data: The plan must display the complete, closed-loop boundary network of your lot exactly as it is legally recorded in the official county tax maps and GIS registers, including the exact linear distances of all property lines.
- The Existing Infrastructure Mapping: The blueprint must precisely map all current improvements on the property: the main house footprint, detached garages, outbuildings, existing patios, sidewalks, and the current footprint of the existing driveway.
- The Proposed Expansion Geometry: The new section of pavement must be clearly distinguished from the existing structures using a unique graphical pattern or hatch line. The expansion must be explicitly labelled with its total square footage and its exact linear dimensions (e.g., Proposed 10′ x 35′ Concrete Driveway Expansion).
- Comprehensive Setback and Interface Dimension Strings: The plan must feature clean, mathematically accurate dimension lines showing the exact distance from the edge of the new driveway to the side property lines, the front property line, and the main residential structure. It must clearly illustrate the apron zone crossing the public right-of-way.
- Official Metadata Block: Every professional plan requires a standardized title block containing the homeowner’s full name, the exact physical property address, the date of production, any subsequent revision numbers, and the unique county Assessor’s Parcel Number (APN).
For standard single-family residential driveway expansions on properties with moderate terrain, you do not need to incur the high costs and long wait times associated with hiring an invasive physical land surveyor. A records-based Standard Site Plan provides the precise data required to satisfy municipal engineering and zoning desks.
At Prime Site Plan, our Standard Site Plan Package is designed specifically to meet the requirements of residential driveway modifications and access reviews. We extract official regional GIS data feeds, public land records, and verified county parcel maps to build a flawless, permit-ready document, delivered directly to your inbox within 24-48 hours.
Section 6: Material Dynamics — Structural and Administrative Permitting Profiles
To provide a complete view of how the entire permitting and structural execution path shifts depending on the scope and design choices of your driveway modification, analyze the comprehensive engineering matrix below:
| Project Profile / Scope | Material Options | Key Permit Review Desk | Primary Documentation Required |
|---|---|---|---|
| Minor Strip / Side Extension (<300 sq ft) | Poured Concrete, Bituminous Asphalt, Interlocking Pavers | Zoning Desk & Building Code Review | GIS-based Standard Site Plan, Material Specifications Sheet |
| Major Layout Modification (Turnaround Hammerhead / RV Pad) | Reinforced Concrete (6-gauge wire mesh), Dense-Grade Asphalt | Public Works, Civil Engineering Desk | GIS-based Standard Site Plan, Stormwater Grading Profile, HOA Approval Letter |
| Complete Right-of-Way Access Overhaul (New Apron / Culvert Ditch Crossing) | Heavy-Duty Class I Concrete, Corrugated HDPE Pipe, Steel Culvert | Public Works, Department of Transportation (DOT) | Elite Site Plan, Civil Culvert Hydrology Calculations, Right-of-Way Permit Form |
Frequently Asked Questions About Driveway Permitting
Can I use gravel or crushed stone for my driveway expansion to avoid permit rules?
In most urban and suburban jurisdictions, no. While gravel is semi-pervious when initially installed, vehicular traffic quickly compacts the stone and drives fine dirt particles into the voids, turning it into a highly impervious surface over time. Consequently, municipal engineering desks treat gravel extensions the same as concrete or asphalt regarding lot coverage limits. Furthermore, many cities strictly prohibit gravel driveways because vehicles track loose stones out into the public street, creating a safety hazard for other drivers.
What happens if I pour my driveway expansion without getting a permit?
If you proceed without an approved permit, you are exposed to significant legal and financial risk. Municipal code enforcement officers actively monitor neighborhoods for unpermitted construction. If caught, you will receive a formal Stop Work Order and a citation carrying hefty financial penalties. More importantly, if the city determines that your unpermitted driveway crosses an invisible setback line, violates lot coverage limits, or interferes with an underground utility easement, they have the legal authority to force you to break up and remove the new pavement entirely at your own expense.
Do I need a permit if I am only replacing my old driveway without expanding it?
If you are performing a strict “in-kind” replacement—meaning you are removing damaged concrete and pouring new concrete within the exact same footprint, width, and thickness—many municipalities will waive the need for a full zoning review. However, you may still require a minor Public Works or Encroachment Permit if your contractor needs to replace the apron section within the public right-of-way, as the city must verify that the new sidewalk cross-slope and curb transitions match local engineering codes.
How does a Homeowners Association (HOA) interact with city driveway rules?
An HOA operates under private contract law (CC&Rs) which exists entirely separate from municipal zoning codes. A city building department can approve your driveway permit layout from an engineering standpoint, but your HOA can still legally deny the project if the material, color, or placement violates community design standards. You must always secure written architectural approval from your HOA board before initiating construction, as an HOA victory in court can force you to tear down a city-approved structure.
Section 7: Secure Project Success with an Unshakable Foundation
Executing a seamless, long-lasting driveway expansion requires more than concrete, rebar, and skilled labor. It requires a solid foundation in administrative and legal reality. By stepping away from unreliable hand-drawn diagrams and avoiding the trap of unverified online screenshots, you can present municipal engineers and zoning reviewers with a technical layout that satisfies their requirements and speeds up your project’s timeline.
Investing in a professional, records-grounded site plan protects your property from future boundary disputes with neighbors, insulates you from costly code enforcement actions, and gives your installation contractor an exact layout map to build against.
At Prime Site Plan, we specialize in taking the stress and guesswork out of the municipal permitting loop. We leverage official municipal GIS databases, historical land records, and professional drafting standards to deliver high-quality, permit-ready residential site plans across all 50 states.
Are you ready to clear municipal engineering reviews and get your driveway expansion underway? Choose the perfect professional layout package for your development goals below, and let our expert drafting team deliver the precise documentation you need today.
