What is a Site Plan? The Ultimate Guide for Home Remodeling
When embarking on a home remodeling or construction project, homeowners often find themselves overwhelmed by a mountain of paperwork, local zoning regulations, and architectural jargon. Among the many documents requested by city building departments, HOA boards, or general contractors, one term surfaces continuously: the site plan.
If you are planning to add a new deck, build an Accessory Dwelling Unit (ADU), construct a retaining wall, or expand your home’s footprint with a new addition, understanding what a site plan is—and why it is absolutely indispensable—is the crucial first step toward a successful, stress-free project.
For background on the mapping technology used to assemble property information, see the U.S. Geological Survey explanation of GIS.
Before you begin
In this comprehensive, ultimate guide, we will break down exactly what a site plan is, contrast it with other common real estate and drafting documents (like plot plans and property surveys), examine its essential elements, and look at how it directly influences your permit approvals. We will also outline exactly when you need a professional site plan and how to secure one efficiently without breaking your budget.
In this guide
Jump directly to the section you need.

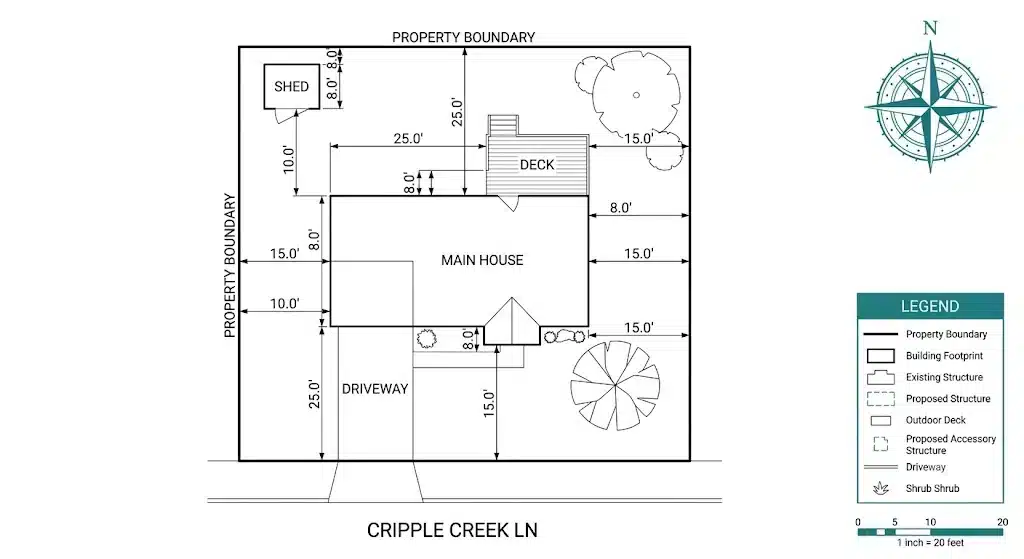

1. Defining the Site Plan: The Blueprint of Your Property
At its core, a site plan (sometimes referred to as a plot plan or block plan) is a detailed, top-down architectural and engineering document that provides a bird’s-eye view of a specific property. It acts as a comprehensive map, illustrating the exact configuration of existing features and proposed improvements within the legal boundaries of a land parcel.
Unlike floor plans, which look inside a building to show room layouts, doors, and interior walls, a site plan focuses heavily on the relationship between human-made structures and the surrounding land. It acts as a bridge between your architectural ideas and the physical reality of the earth, legal property lines, and municipal infrastructure.
A professionally drafted site plan is always drawn to a specific engineering scale (such as 1″ = 20′ or 1″ = 30′), meaning every single inch on the drawing represents a precise number of feet in the real world. This rigorous scaling allows city planners, zoning administrators, and construction crews to verify that your project complies perfectly with local land-use laws, setback rules, and safety ordinances.
2. Site Plan vs. Plot Plan vs. Property Survey: Clearing the Confusion
One of the most common points of frustration for property owners is the overlapping terminology used by building departments and contractors. You might hear the terms site plan, plot plan, and property survey used interchangeably. However, while they are closely related, they serve completely different legal and technical purposes. Misunderstanding these differences can lead to costly delays and wasted administrative fees.
What is a Plot Plan?
Historically, a plot plan is viewed as a simplified version of a site plan. While a site plan contains intricate details about utilities, topography, grading, and complex engineering data, a plot plan typically focuses strictly on the footprint of the primary structures and their exact distances from the property lines.
For simple residential projects—such as building a backyard shed or putting up a new boundary fence—a city department might accept a basic plot plan. In modern digital drafting, the lines between these two terms have blurred significantly. Most online drafting services offer what is technically an advanced plot plan but brand it as a site plan because it contains the visual data required for standard residential permitting. If you want to know how to navigate this quickly, keep an eye out for our upcoming guide on How to Get a Certified Plot Plan Online in 24 Hours.
What is a Property Survey?
A property survey is a legally binding document created exclusively by a licensed professional land surveyor (PLS). To produce a survey, a professional must physically visit the property, use specialized transit and GPS equipment, locate physical iron pins or monuments in the ground, and legally certify the exact coordinates of the property boundaries. For a breakdown of how these technical maps differ from other common property layouts, check out our future article on The Difference Between a Site Plan and a Property Survey Explained.
Surveys carry significant legal weight and are required for property sales, resolving neighbor boundary disputes, or securing title insurance.
Why Your Site Plan Is NOT a Survey (And Why That’s Good for Your Wallet)
It is highly important to understand that most site plan providers offer non-certified plans. This means they do not send a physical surveyor to your home to plant stakes in the ground. Instead, expert designers utilize state-of-the-art Geographic Information Systems (GIS), county tax maps, satellite imagery, and client-provided deeds to draft an accurate layout of your property.
If your local building department explicitly requires a certified property survey signed and stamped by a licensed surveyor, an online drafting service cannot replace that. However, in the vast majority of standard home remodeling projects—like adding a deck, a patio, or a driveway—the city already has the property boundaries on record. They simply need a clean, accurately scaled site plan showing where your new project will sit relative to those pre-recorded lines.
Purchasing a non-certified site plan saves you thousands of dollars and weeks of waiting compared to hiring a field surveyor. You can compare our available options and find the right fit for your project on our Choose Your Plan.
3. Anatomy of a Site Plan: Crucial Elements Every Plan Must Include
To be deemed complete and acceptable by a local zoning board or building inspector, a site plan must feature a standardized set of core data elements. If any of these are missing, your permit application will likely be rejected immediately. Let’s look closely at the anatomy of a professional site plan:
Property Lines and Boundaries
The legal perimeter of your land. These lines form the boundary box for your entire project and are drawn with precise linear dimensions and angles.
Existing vs. Proposed Structures
A professional site plan must clearly differentiate between what is currently standing on the property and what you intend to build. The primary home, existing detached garages, tool sheds, and decks are usually shaded or labeled differently than your proposed additions, new pools, or patios.

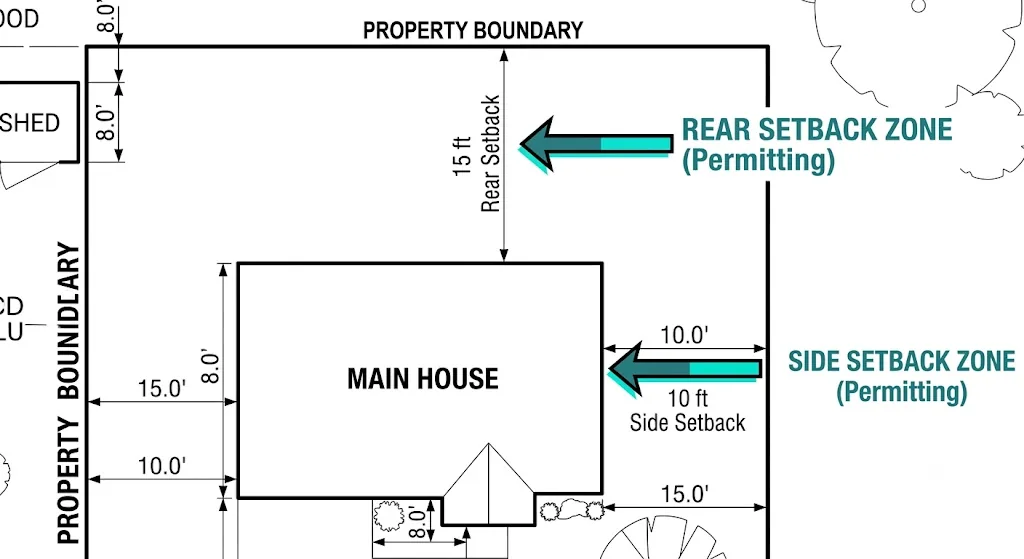

Setbacks and Buffer Zones
A setback is the mandatory legal distance that a structure must keep from a property line. For instance, your city might dictate that a home addition must be at least 15 feet away from the rear property line and 8 feet away from the side property line. A good site plan includes clear dimension strings demonstrating that your proposed structure does not encroach on these legal zones.
Easements and Rights-of-Way
An easement is a portion of your land that utility companies, municipalities, or neighbors have a legal right to access or cross. You cannot build permanent structures over an easement (such as a water main or an underground power line). Your site plan must clearly map these restrictions.
Driveways, Walkways, and Parking
All impervious surfaces where vehicles or pedestrians move must be outlined. This includes concrete or asphalt driveways, gravel parking pads, walkways, and sidewalks adjacent to the street.
North Arrow and Graphic Scale
A site plan cannot exist without context. A north arrow ensures the zoning reviewer understands the property’s orientation, and a graphic scale bar ensures that even if the document is printed on a different paper size, the measurements can be accurately verified using an engineer’s scale rule.
Surrounding Context (Streets and Curbs)
The plan must show the primary access road, the street name, and the location of curbs, property lines intersecting the public right-of-way, and sometimes even nearby fire hydrants.
4. Why You Absolutely Need a Site Plan for Home Remodeling
You might wonder why a city bureaucrat cares so much about an outdoor map of your yard when you are simply expanding an interior kitchen or building an outdoor deck. The reason is simple: your property does not exist in a vacuum. Every structural alteration you make impacts the environment, safety, infrastructure, and aesthetics of your local community.
Here are the primary reasons why a site plan is required before you can drive a single nail:
A. Securing Building and Zoning Permits
The absolute primary function of a site plan during a remodel is to obtain a legal building permit. Municipalities enforce local zoning ordinances strictly to prevent overcrowding, protect natural resources, and ensure structural safety. Without an accurately scaled site plan, the zoning department cannot physically check if your project violates local laws.
For instance, if you are planning to add an outdoor living space or a structural platform to your backyard, you will need to prove your layout honors property lines perfectly. If you want to see exactly how to format this type of project for approval, read our deep-dive on the Deck & Patio Permit Site Plan Guide.
B. Adhering to Strict Setback Requirements
As mentioned earlier, setbacks are designed to ensure safety, fire separation between properties, and a uniform aesthetic in neighborhoods. If you build a structure that violates a setback line, even by a few inches, your neighbors can report you, and the city can legally force you to tear down the structure at your own expense. A site plan acts as your insurance policy, proving to the city—and to yourself—that your construction falls safely within legal limits.
C. Calculating and Managing Lot Coverage
Every municipality enforces a maximum “lot coverage” ratio, which represents the percentage of your total land area that can be covered by impervious surfaces (structures, concrete, roofs, and decks that do not allow rainwater to absorb naturally into the soil).
If you add too much roof area or concrete, you increase stormwater runoff, which can overwhelm municipal sewer systems and cause flooding. To better understand how these spatial equations dictate what you can build, look out for our upcoming guide on How to Calculate Lot Coverage Requirements for Your Home Addition. A site plan outlines every single square foot of impervious surface, making it easy to calculate whether your new addition complies with local environmental thresholds.
5. Typical Remodeling Projects That Demand a Professional Site Plan
Not every single minor repair requires a site plan. If you are replacing your kitchen cabinets, painting your siding, or installing new carpet, you will not need one. However, the moment your remodeling project alters the exterior footprint of your property or involves outdoor structures, a site plan becomes mandatory.
Depending on the complexity of your project, you can choose between our tailored packages: the straightforward Base Plan for simple layouts, the comprehensive Standard Plan for most residential permits, or the highly detailed Elite Plan designed for major structural developments.
Let’s look at the most common residential projects that require high-quality site drafting:
Home Additions and Structural Extensions
Whether you are expanding your master bedroom outward, adding a sunroom, or building a multi-story addition, you are altering your home’s footprint and encroaching closer to your setback lines. A site plan is the very first document requested for these projects.
Swimming Pools and Spas
Installing an in-ground or large above-ground pool requires comprehensive zoning and safety approvals. You must factor in pool equipment noise, safety fences, utility line clearances, and water drainage. To fully understand the permitting complexities involved in planning a backyard oasis, make sure to check out our comprehensive Backyard Pool Permit Site Plan Guide.
Accessory Dwelling Units (ADUs) and Tiny Homes
With housing demands rising, building detached guest houses, mother-in-law suites, or ADUs has exploded in popularity. Because these are fully independent living spaces, zoning boards review their placement with extreme scrutiny. They check utility hookups, separate setbacks, and lot coverage meticulously. For a clear roadmap on how to successfully prepare for this type of major property expansion, read our detailed ADU Development & Property Layout Guide.
Fences and Retaining Walls
Building a boundary fence or leveling a sloped yard with retaining structures requires strict adherence to height limits and safety protocols. If you are dealing with uneven land or steep slopes, you need to understand how grading and earth retention alter the permit approval process. Discover the essential steps in our dedicated Retaining Walls & Steep Slopes Permit Guide.
Alternatively, if your project is focused purely on marking your property boundaries securely, you can learn how to sketch and map out your layout by reviewing our guide on Fence Permit Site Plan Guide.
Detached Garages, Sheds, and Workshops
Building a detached workspace or tool shed requires zoning clearance to ensure it doesn’t crowd property borders or block natural light. If you are planning a DIY project or setting up a pre-fabricated backyard building, you can avoid common pitfalls by consulting our comprehensive Backyard Shed Zoning & Building Permit Guide as well as our step-by-step Shed Permit Step-by-Step Guide.
New Driveways and Culvert Modifications
Altering how vehicles enter and exit your property requires special attention to city rights-of-way and sightlines. If you are expanding your parking space or paving a new path, you will need a site plan that honors local transportation rules. Learn more in our Driveway Permit & Zoning Guide.
6. Digital Site Plans vs. Traditional Field Surveys: Choosing the Right Tool
When faced with a site plan requirement, you essentially have two main pathways: hiring a traditional field surveying/engineering firm or partnering with a modern online digital drafting service. Choosing the right one depends entirely on what your city department is asking for.
Let’s look at a straightforward comparison to help you choose the smartest option:
| Feature | Traditional Field Survey / Engineering Firm | Online Digital Drafting Service (Non-Certified) |
|---|---|---|
| Average Cost | $1,500 – $4,500+ | $100 – $300 |
| Turnaround Time | 2 to 6 Weeks | 24 to 48 Hours |
| Methodology | Physical site visits, laser transits, boundary staking. | Advanced GIS data, high-resolution satellite imagery, county tax maps. |
| Best Suited For | Intense legal boundary disputes, complex commercial subdivisions, major structural civil engineering. | Standard residential permits (decks, pools, additions, sheds, fences, ADUs). |
| Legal Certification | Yes (Signed & stamped by a licensed surveyor). | No (Drafted accurately to scale for plotting/permitting use). |
The key takeaway here is efficiency. If your project falls under standard residential permitting and your city does not specifically mandate a freshly stamped, physical land survey, an online digital drafting option is the superior choice. It allows you to skip the massive financial premium and the multi-week project backlog common among local engineering firms.
To achieve this level of precision without visiting your property, professional digital draftspersons rely on advanced mapping systems. If you’ve ever wondered how modern tech stacks compare to basic map tools when creating permit-ready layouts, take a look at our analysis on GIS Land Records & Site Verification Guide.
Furthermore, if you are looking to scale your project up to a commercial or multi-family level, you can find tailored advice in our site-plan-guide or check out our dedicated Commercial Site Plan services.
7. How to Read and Interpret a Site Plan Like a Pro
When you receive a drafted site plan from a professional service, looking at it for the first time can feel like reading a foreign language. However, once you understand a few universal drafting conventions, it becomes incredibly straightforward to interpret.
Understanding Engineering Scales
Unlike architectural blueprints, which often use fractions of an inch to represent feet (e.g., 1/4″ = 1′-0″), site plans utilize standard engineering scales based on multiples of ten. On a plan marked with a scale of 1″ = 20′, every single linear inch you measure on the physical paper corresponds to exactly 20 feet on your actual land. This makes calculating real-world distances incredibly simple.
Deciphering Lines, Symbols, and Callouts
- Solid Bold Lines: Typically represent the outer borders of your existing primary house and permanent structures.
- Dashed Lines: Often indicate hidden elements, overhead power lines, underground utility easements, or specific setback limitations.
- Dimension Strings: Thin lines with arrows at both ends featuring a number in the center (e.g., 24.5′). This tells you the exact distance between two specific points, such as the edge of your new deck and your property line.
- Property Line Annotations: You might see notations like N 00° 12′ 30″ E 120.00′. This is a surveyor’s bearing notation, indicating the precise compass direction and distance (120 feet) of that specific boundary line.
8. Common Site Plan Pitfalls (And How to Avoid Rejection)
Submitting a site plan that contains errors can put an immediate halt to your remodeling project, pushing your timeline back by weeks or even months as you wait for a new review cycle. Being aware of the most common mistakes allows you to catch them before they ever reach the city clerk’s desk.
1. Inaccurate Scale or Missing Scale Bars
If your plan is submitted without an explicit scale or a visible graphic scale bar, the zoning officer cannot verify your measurements. Always ensure your plan states the scale clearly (e.g., Scale: 1″ = 30′) and includes a printed graphic scale bar.
2. Failure to Show All Existing Structures
Some homeowners focus so intensely on their new project that they forget to include pre-existing structures like an old tool shed in the corner, a concrete walkway, or an old detached carport. If a city reviewer checks their internal satellite imagery and spots an unmapped structure on your land, they will reject your plan for incompleteness.
3. Ignoring Local Setback Rules
Submitting a proposal that clearly crosses into a setback zone is a guaranteed way to get rejected. Always research your local zoning district rules before drafting, ensuring your project remains entirely within the allowable building envelope. If your plan does face opposition, don’t panic—be prepared by checking out our upcoming guide on Zoning Board Approvals: What to Do If Your Site Plan Gets Rejected.
4. Forgetting Impervious Surface/Lot Coverage Limits
If your local zone limits lot coverage to 40% and your proposed pool, patio, and home extension push your property to 45%, your site plan will be denied. You must either reduce the size of your project, swap solid concrete for permeable pavers, or apply for a formal zoning variance (a lengthy and uncertain legal process).
9. Step-by-Step: How to Get a Professional Site Plan Online
If you are ready to move forward with your home remodeling project and need a permit-ready site plan, securing one online is an incredibly streamlined and affordable process. Here is exactly how the workflow operates:
Step 1: Gather Your Initial Property Data
Collect any existing documentation you have on hand. This can include an old deed description, a copy of a previous tax map, or even just your standard home address. If you have a rough sketch or photos of where you want your new project to go, gather those as well.
Step 2: Submit Your Information Online
Visit a reputable online digital site plan drafting service. You will input your property address, describe your remodeling goals (e.g., “I want to add a 12×20 foot wooden deck to the back of my home”), and upload any supporting documents or rough sketches you possess.
Step 3: Expert Drafting and GIS Integration
Professional designers will take your information and cross-reference it with high-resolution satellite data, county parcel records, and GIS mapping databases. They will meticulously draft your property boundaries, locate all existing structures, and carefully overlay your proposed improvements down to the exact scale requested.
Step 4: Review and Revise
Within 24 to 48 hours, you will receive a digital draft of your site plan. A premium drafting service will allow you to review the layout and request necessary adjustments to ensure the dimensions align perfectly with your project plans before producing the final copy.
Step 5: Print and Submit to Your Local City Hall
Once you approve the final layout, you will download a high-resolution, scale-accurate PDF file. You can print this file out at a local print shop or submit it directly through your city’s online building permit portal.
10. Conclusion: Laying the Foundation for Your Project’s Success
A site plan is far more than just a bureaucratic checkbox; it is the fundamental foundation of your entire home remodeling journey. It ensures your ideas are physically viable, legally compliant, and perfectly optimized for your specific piece of land.
By investing in a clean, accurate, and professionally drafted site plan early in your planning phase, you protect yourself from immense legal liabilities, save thousands of dollars in contractor errors, and set yourself up for a swift, painless permit approval at city hall.
Don’t let complicated paperwork stall your remodeling dreams. Partnering with a dedicated online digital drafting service allows you to secure a custom, permit-ready site plan quickly and affordably. Ready to get started? Visit our Home page to kickstart your permitting process today.
